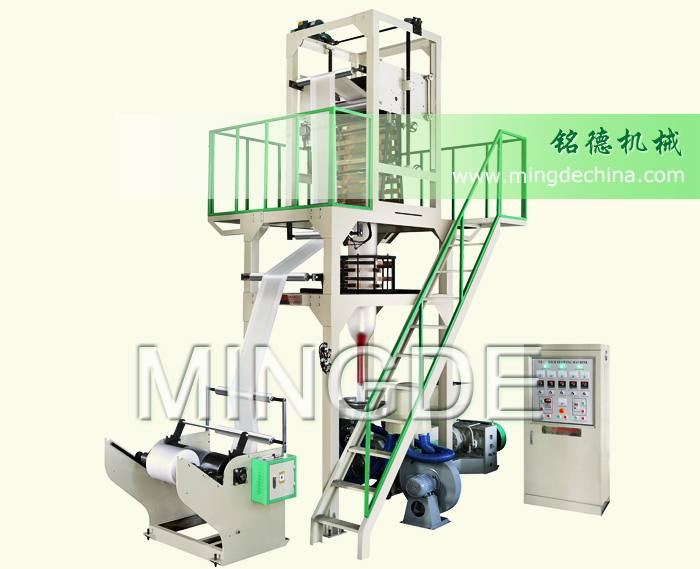

MD-H系列低壓吹膜機
|
|
Main Technical Parameters 主要技術參數
|
|
Model
|
型號
|
MD-H45/50
|
MD-H55
|
MD-H60
|
MD-H65
|
|
Suitable Material
|
適用材料
|
HDPE
|
|
Max Film Width(mm)
|
最大吹膜寬度
|
600
|
800
|
1000
|
1200
|
|
Film Thickness(mm)
|
薄膜厚度
|
HD:0.008-0.08
|
|
Max Extrusion Output HD
|
最大擠出量HD
|
30/40kg/hr
|
50kg/hr
|
60kg/hr
|
80kg/hr
|
|
Extrusion unit 擠出機組
|
|
Gear Box
|
齒輪箱
|
133/146
|
173
|
173
|
200
|
|
Screw Diameter(mm)
|
螺桿直徑
|
φ45/50
|
φ55
|
φ60
|
φ65
|
|
Screw L/D Ratio
|
螺桿長徑比
|
28:1
|
28:1
|
28:1
|
28:1
|
|
Screw’s Material
|
螺桿材料
|
38 CRMOALA
|
|
Barrel’s Material
|
料筒材料
|
38 CRMOALA
|
|
Barrel’s Cooling Fan
|
料筒冷卻
|
250W×2
|
370W×2
|
370×2
|
370×3
|
|
Thermo Control (zone)
|
料筒溫度控制
|
3
|
3
|
3
|
4
|
|
Driving Motor (kw)
|
主電機功率
|
7.5/11
|
18.5
|
22
|
30
|
|
Extrusion Die 模頭
|
|
Die Size (mm)
|
?？?
|
HD:φ60/80
|
HD:φ80/100
|
HD:φ100/120
|
HD:φ120/φ150
|
|
Screen Changer
|
換網器
|
Standard manual
|
|
Thermo Control (zone)
|
溫度控制
|
2
|
2
|
2
|
2
|
|
Air Ring (mm)
|
風環
|
φ620
|
φ620
|
φ620
|
φ760
|
|
Cooling Blower (kw)
|
冷卻風機
|
1.5
|
2.2
|
2.2
|
3
|
|
Center Steady Stick
|
中心穩定棒
|
1 PCS
|
|
Take-UP Unit 牽引部分
|
|
Roller Width (mm)
|
牽引輥寬
|
φ138×650
|
φ138×850
|
φ138×1100
|
φ138×1300
|
|
Embossing Roller Width
|
壓花輥寬
|
550mm
|
750mm
|
1000mm
|
1200mm
|
|
Take-UP Motor (kw)
|
引取電機功率
|
0.75
|
1.1
|
1.1
|
1.5
|
|
Take-UP Speed(M/min)
|
引取速度
|
10-60
|
10-60
|
10-60
|
10-60
|
|
Height adjustable type
|
上下升降式
|
700mm
|
|
Winding Unit 收卷部分
|
|
Type OF Winder
|
收卷方式
|
Surface Friction Single Winder手動表面摩擦式單收卷
|
|
Roller Width (mm)
|
收卷輪寬
|
700
|
900
|
1100
|
1300
|
|
Winding Motor (N.M)
|
卷取功率
|
6
|
10
|
10
|
16
|
|
Winding Speed(M/min)
|
卷取速度
|
10-60
|
10-60
|
10-60
|
10-60
|
|
Voltage
|
電源
|
380V, 50HZ, 3PHASE
|
|
Cover Dimensions (m)
|
占地尺寸
|
4.5×2.0×4.3
|
4.5×2.2×4.5
|
5×2.5×4.8
|
5.5×2.8×5.2
|
|
|
|
|
|
|
|
|
OPTIONAL EQUIPMENT 選擇性配備
|
|
1)自動吸料機
|
1)AUTO LOADER
|
|
|
|
|
2)雙功位收卷
|
2)DOUBLE WINDER
|
|
|
|
|
3)表面處理
|
3)CORONA
|
|
|
|
|
|
4)氣漲軸
|
4)AIR SHAFT
|
|
|
|
|
|
5)手動快換網裝置
|
5)MANUAL MECHANICS SCREEN CHANGER
|
|
|
|
6)全自動收卷
|
6)FULL AUTOMATIC WINDER
|
|
|
|
|
7)自動補氣
|
7)AUTOMATICALLY SUPPLY AIR
|
|
